Description
Need a replacement TPMS sensor? This Jsueng 315MHz 4-Pack sensor set fits Acura, Honda vehicles and arrives pre-programmed — swap it in, run the relearn, clear the dashboard warning light. OE replacement numbers listed below.
Acura TPMS Sensor 315MHz Fitment & Compatibility
Browse all our TPMS sensors for Acura, Honda and other makes.

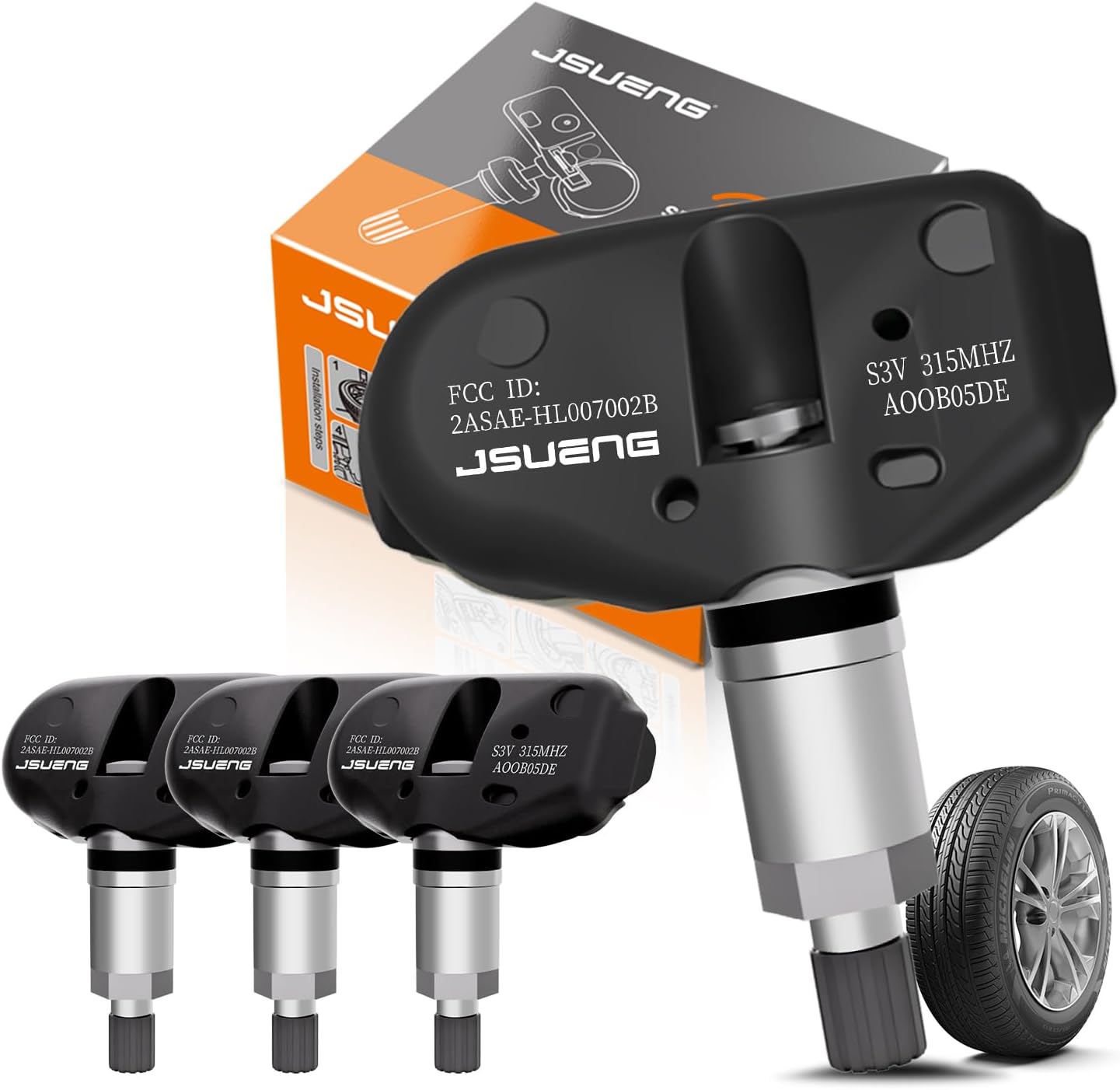

TPMS Sensors,315Mhz set of 4 Tire Pressure Monitor System for Acura Honda
Key Features
- 【OE PART NUMBER】: 06421S3VA04, 42753SHJA53, 06421S9VA03
- 【FITMENT/COMPATIBILITY】: Fit for 2004-2006 Acura MDX, 2004-2013 Acura RL, 2005-2008 Acura TL, 2005-2010 Honda Odyssey Touring, 2005-2008 Honda Pilot, 2006-2019 Honda Ridgeline
- 【PRE-PROGRAMMED】: Pre-programming DOES NOT mean that the sensor will automatically match your vehicle after installation. After replacing the sensor, you will need to perform a RE-LEARNING/PAIRING operation. This process may need a diagnostic scanner or activation tool
- 【OBDII RELEARN】: 1.OBDII connector is required. 2.Confirm TPMS sensors are properly installed. 3.Adjust tire pressures to placard value. 4.Activate TPMS tool on left front tire sidewall next to the valve stem. 5.Repeat for Rf/RR/LR tires. 6.Apply OBD connector to DLC. 7.Tern ignition to ON. 8.Press OK on TPMS Tool to transfer date to ECU. 9.Disconnect OBD connector from DLC. 10.Turn ignition to OFF then start the engine. 11.Drive for at least 5 minutes at 28 mph
- 【LONG SERVICE LIFE】: The tire pressure sensor has a high-performance Cr2032 battery and 900Kpa(130.53psi) chip. It can be made to last up to 5-8 years of normal usage and can work on -40°c— +125°c. We provide the 1 year guarantee for our products to better serve our customers
- 【PROFESSIONAL TEST】: All tire pressure sensors need to undergo strict quality control before leaving the factory, including durability tests, high and low temperature tests, environmental tests, motor performance tests, mechanical property tests, performance & noise tests, strength tests, etc. Guarantee each product is all-round quality inspected, and strictly monitoring the defective products
Product Details
TPMS Sensors. Fit for 2004-2006 Acura MDX, 2004-2013 Acura RL, 2005-2008 Acura TL, 2005-2010 Honda Odyssey Touring, 2005-2008 Honda Pilot, 2006-2019 Honda Ridgeline. Replaces 06421S3VA04.
OE Part Number
06421S3VA04, 42753SHJA53, 06421S9VA03
Fitment / Compatibility

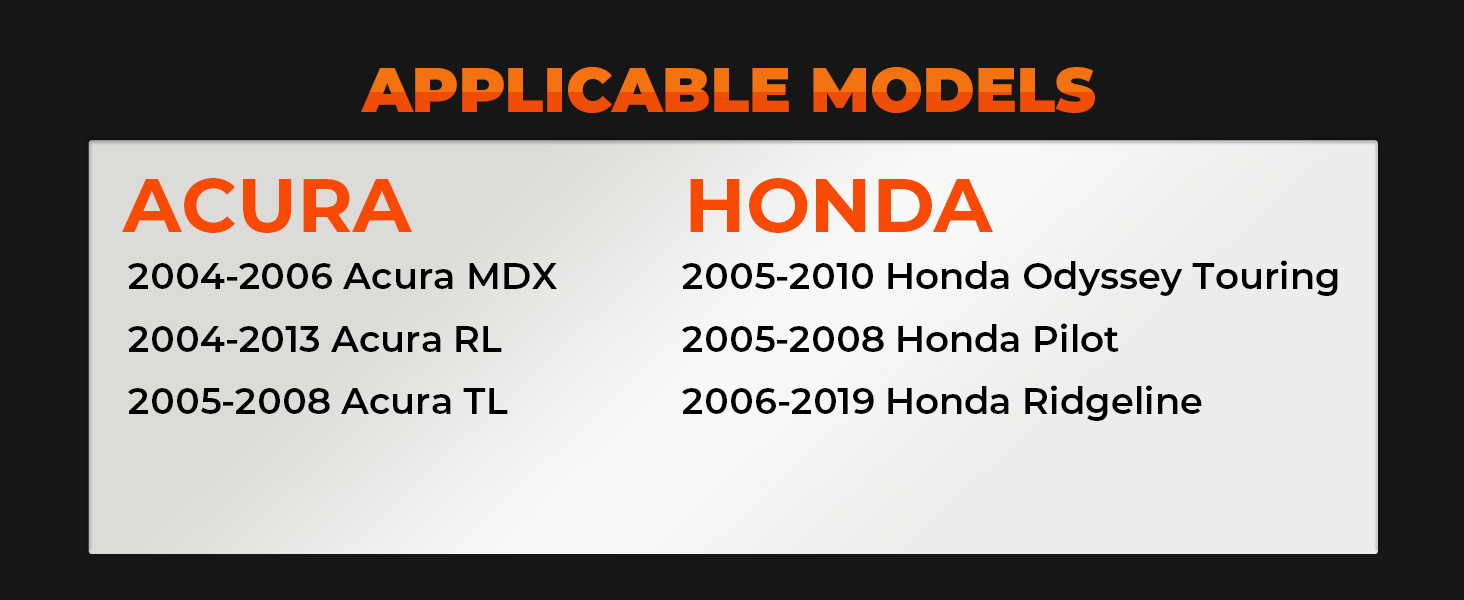

- Fit for 2004-2006 Acura MDX, 2004-2013 Acura RL, 2005-2008 Acura TL
- 2005-2010 Honda Odyssey Touring, 2005-2008 Honda Pilot, 2006-2019 Honda Ridgeline

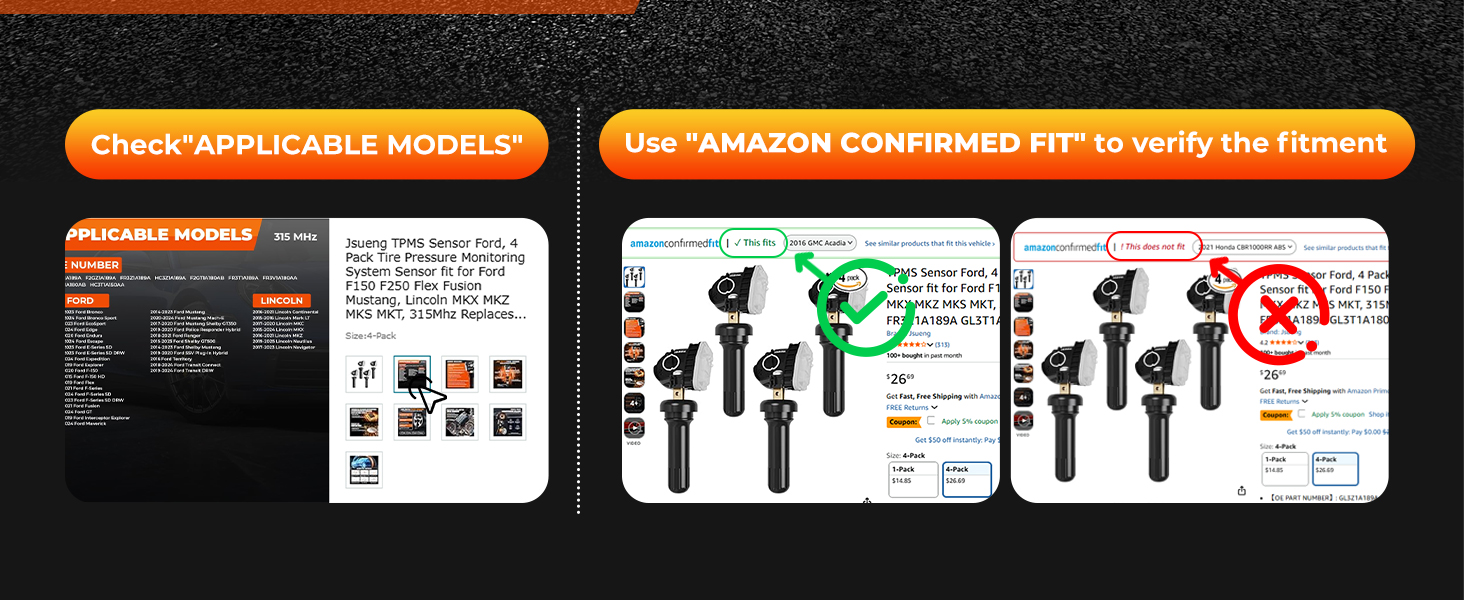

(For detailed and accurate compatibility information, please refer to the image content)
PRE-PROGRAMMED
Pre-programming DOES NOT mean that the sensor will automatically match your vehicle after installation. After replacing the sensor, you will need to perform a RE-LEARNING/PAIRING operation. This process may need a diagnostic scanner or activation tool
OBDII RELEARN
- OBDII connector is required
- Confirm TPMS sensors are properly installed
- Adjust tire pressures to placard value
- Activate TPMS tool on left front tire sidewall next to the valve stem
- Repeat for Rf/RR/LR tires
- Apply OBD connector to DLC
- Tern ignition to ON
- Press OK on TPMS Tool to transfer date to ECU
- Disconnect OBD connector from DLC
- Turn ignition to OFF then start the engine
- Drive for at least 5 minutes at 28 mph
LONG SERVICE LIFE

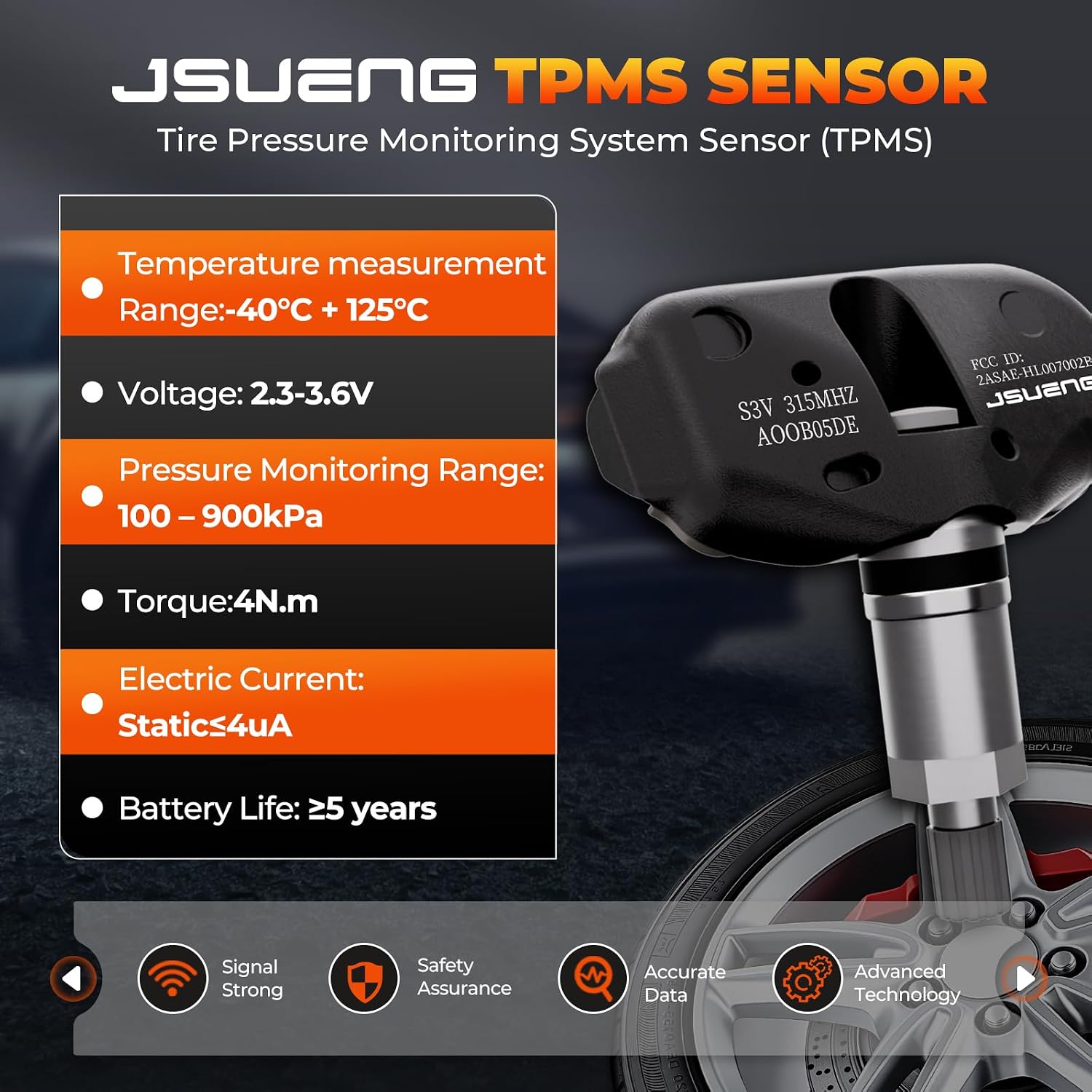

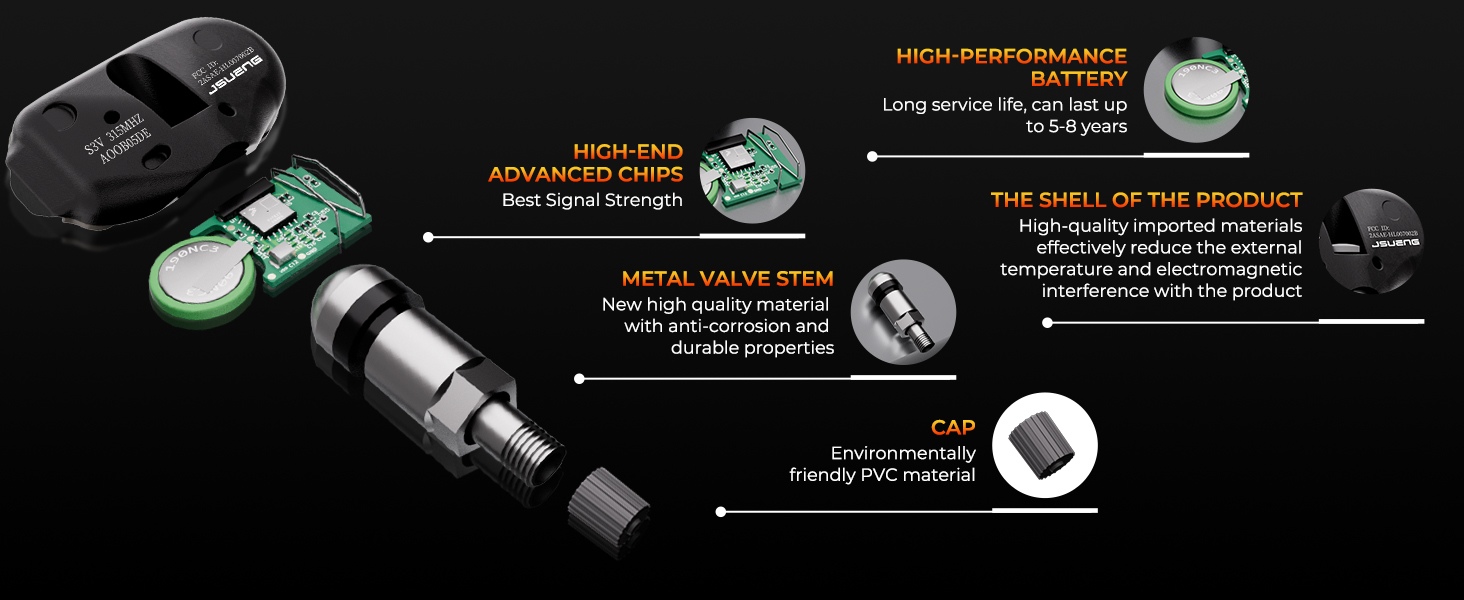

The tire pressure sensor has a high-performance Cr2032 battery and 900Kpa(130.53psi) chip. It can be made to last up to 5-8 years of normal usage and can work on -40°c— +125°c. We provide the 1 year guarantee for our products to better serve our customers
PROFESSIONAL TEST
All tire pressure sensors need to undergo strict quality control before leaving the factory, including durability tests, high and low temperature tests, environmental tests, motor performance tests, mechanical property tests, performance & noise tests, strength tests, etc. Guarantee each product is all-round quality inspected, and strictly monitoring the defective products

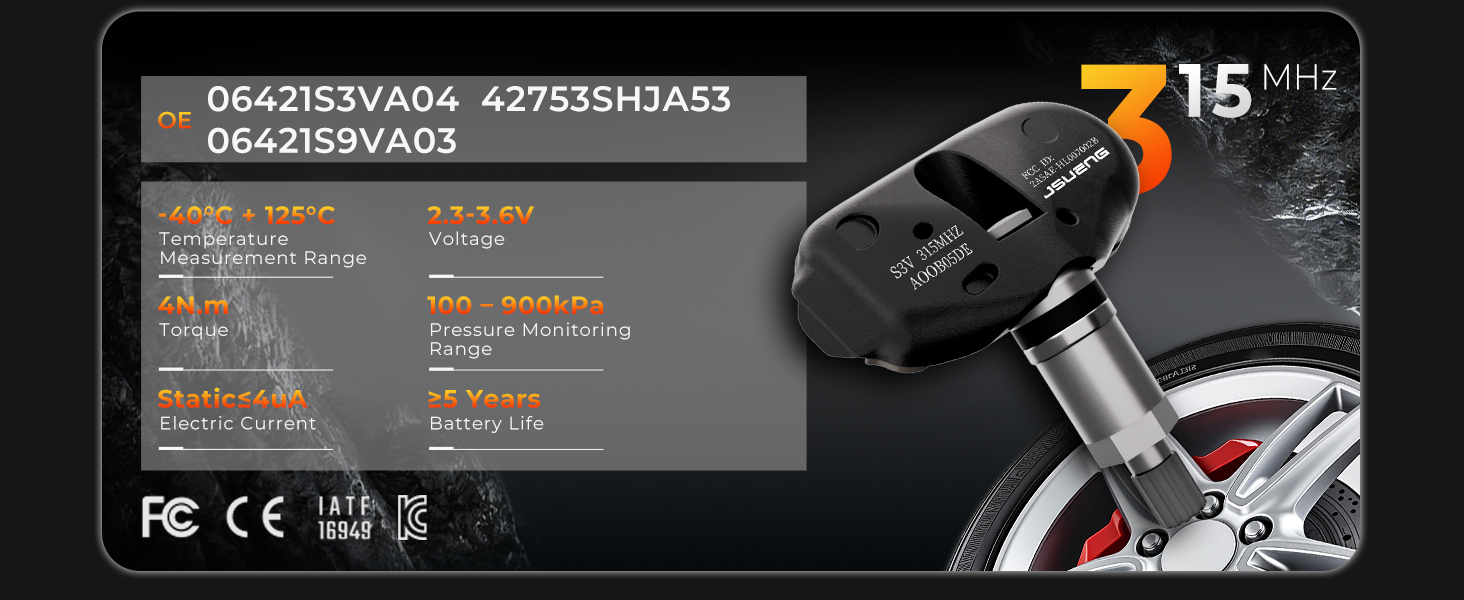

Specifications
| Brand | Jsueng |
| Model / Part Number | 06421S3VA04 |
| Frequency | 315MHz |
| Quantity | Per variant |
| Measurement Accuracy | ±0.05 Bar |
| Response Time | 1 second |
| Upper Temperature Rating | 125 °C |
| Material | Metal, Plastic |
| Mounting Type | Clamp-In / Snap-In (per variant) |
| Battery | Internal, long-life lithium (non-replaceable) |
Support & Returns

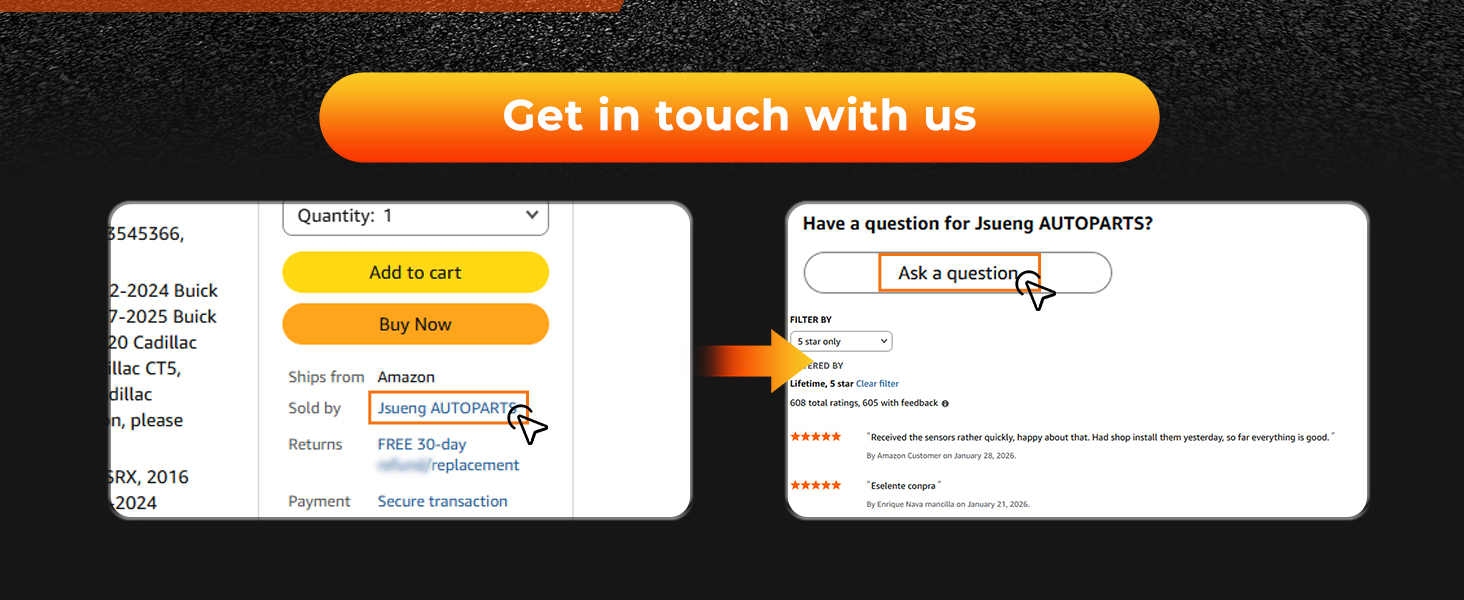

Questions about product installation or use? Contact us at info@jsueng.com — we reply within one business day. Returns accepted within 3 days.
